Applications:
Premier Electrosystems' Environmental Chambers are designed for the high requirements of stability studies and climatic tests. With Stability Chambers specifically developed to meet FDA/ ICH stability requirements generating exceptional control and uniformity of both temperature and humidity. Premier's Stability Chambers feature various safety feature, audio visual alarms, 21 CFR part 11 software and a vast range of options and is the most preferred choice for stability studies. Every Chamber is made in a rigid panel type construction that keeps the chamber working properly through years of demanding test cycles. We also provide instruments that precisely record all test data.

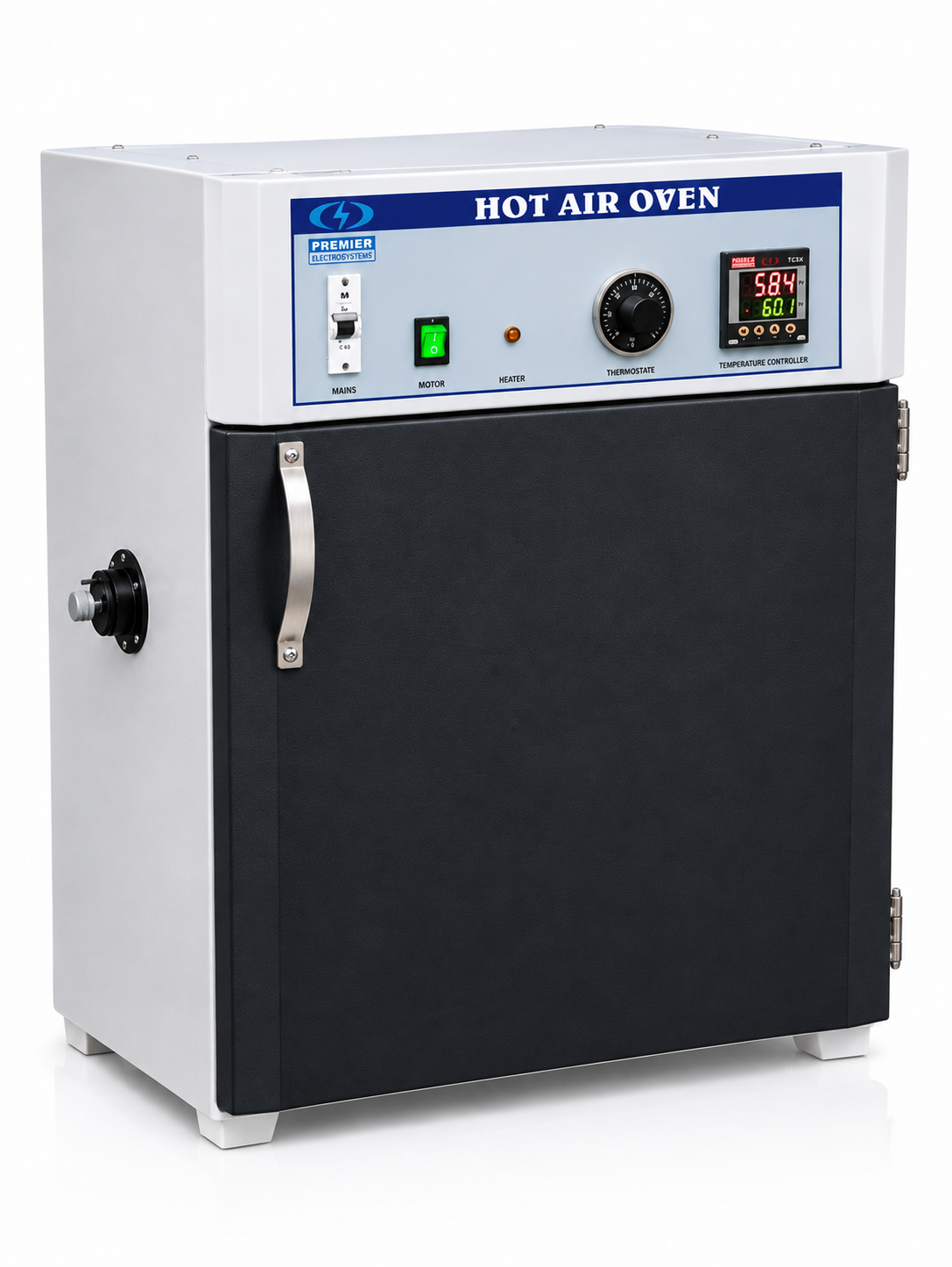

STABILITY CHAMBER/ HUMIDITY CHAMBER/ HOT AIR OVEN
Premier's Stability Chamber are made of double-walled construction with triple backside. Full view inner acrylic door & front door with gasket & lock. Motorized blower is fitted on the backside for uniform temperature & humidity. 3" thick PUF insulation to ensure stable temperature with humidity. The unit is provided with adjustable stainless steel rod mesh tray. The equipment is mounted on caster wheels for easy movement.
SPECIFICATIONS :
- Temp. Range: 10 °C to 60 °C (Negative temperature on request)
- Temp. Accuracy: ± 0.5 °C
- Temp. Uniformity: ± 1 °C
- Humidity Range: 35% RH to 96% RH
- Humidity Accuracy: ± 2% RH
- Humidity Uniformity: ± 3% RH
- Supply: 230V AC
Inner: Stainless Steel (SS 304) with mirror polish
Outer: SS or MS (as per requirement)
Controlling System: Microcontroller based Digital Dual Display Temperature Controller Cum Indicator for Temperature and RH direct Indication and Adjustments as per requirements.
Low Water Level: Low water level indicator on Panel.
Air Circulation: Motorized blower at the back side of the chamber develops a unique airflow system which ensures maximum uniform temperature & humidity condition inside the chamber.
Heating System: High-quality U-shaped S.S. tubular heater is used for better heating.
Humidity System: Steam injection system (Non-condensing type) & reservoir tank with water level arrangement with indicator.
Refrigeration System: CFC Free hermetically sealed Emerson Copeland make compressor for better cooling with R134 A (Eco-Friendly) refrigerant with a time delay to safeguard the compressor system.
Features:
- 50 mm validation port hole with silicone rubber seal to insert sensors for validation.
- Full view observation Acrylic door with gasket to observe the sample inside the chamber.
- Interior illumination for the working area.
- Specially designed stainless steel rod trays ensure uniform temperature distribution.
Safety Features:
- Safety standby thermostat to cut off heater supply in case of overshoot of temperature.
- Float switch to cutoff the wet heater supply in case of low water level in the boiler tank.
- Compressor ON delay timer (2min) to safeguard the compressor.
- Inbuilt overload protector provided for the hermetically sealed compressor.
