OVERVIEW:

Monitor and record temperature, humidity, and 3-phase electrical parameters with precision.
Premier Electrosystems offers customizable, reliable data loggers.
Perfect for industrial, lab, pharma, and environmental applications.

USB DATA LOGGER





Data Logger

Model: PE 2600

FEATURES:

  • Multi-Parameter Monitoring: Logs temperature, humidity, and standard DC signals (0–5V, 4–20mA, etc.) for flexible industrial and lab use.
  • USB Interface for Easy Data Transfer: Plug-and-play USB connectivity for quick data download and configuration via PC.
  • Compact & Customizable Design: Ideal for OEM integration or standalone use, with user-defined logging intervals and alarm thresholds.

View Details

SPECIFICATIONS

  • Input: Temperature, RH, Pressure, Vacuum, Voltage, Current, etc. - all standard inputs
  • No of channels: 1, 2, 4, 8, 16, 32, 48, 64,... (multiples of 16 thereafter)
  • Resolution: 1/0.1/0.01/0.001 (As per requirement)
  • Display: 2 rows of LED display
    • Upper Display: Process Value
    • Lower Display: Channel No
  • Accuracy: ±1 count
  • RTC: In-built Real-time clock & calendar with battery backup of more than 2 years
  • Log Rate: Settable from 10 sec to 24 hrs
  • Storage: Pen drive
  • Size: 96*96 mm with panel mounting clamps
  • Power Supply: 90-270 V AC/DC or as per requirement
  • PC Software: Not needed. Directly view in Excel or text file
  • Optional:
    1. Premier's Warehouse Software for data storage, analysis, graphs, and report generation
    2. Sensors as per requirement
Download PDF

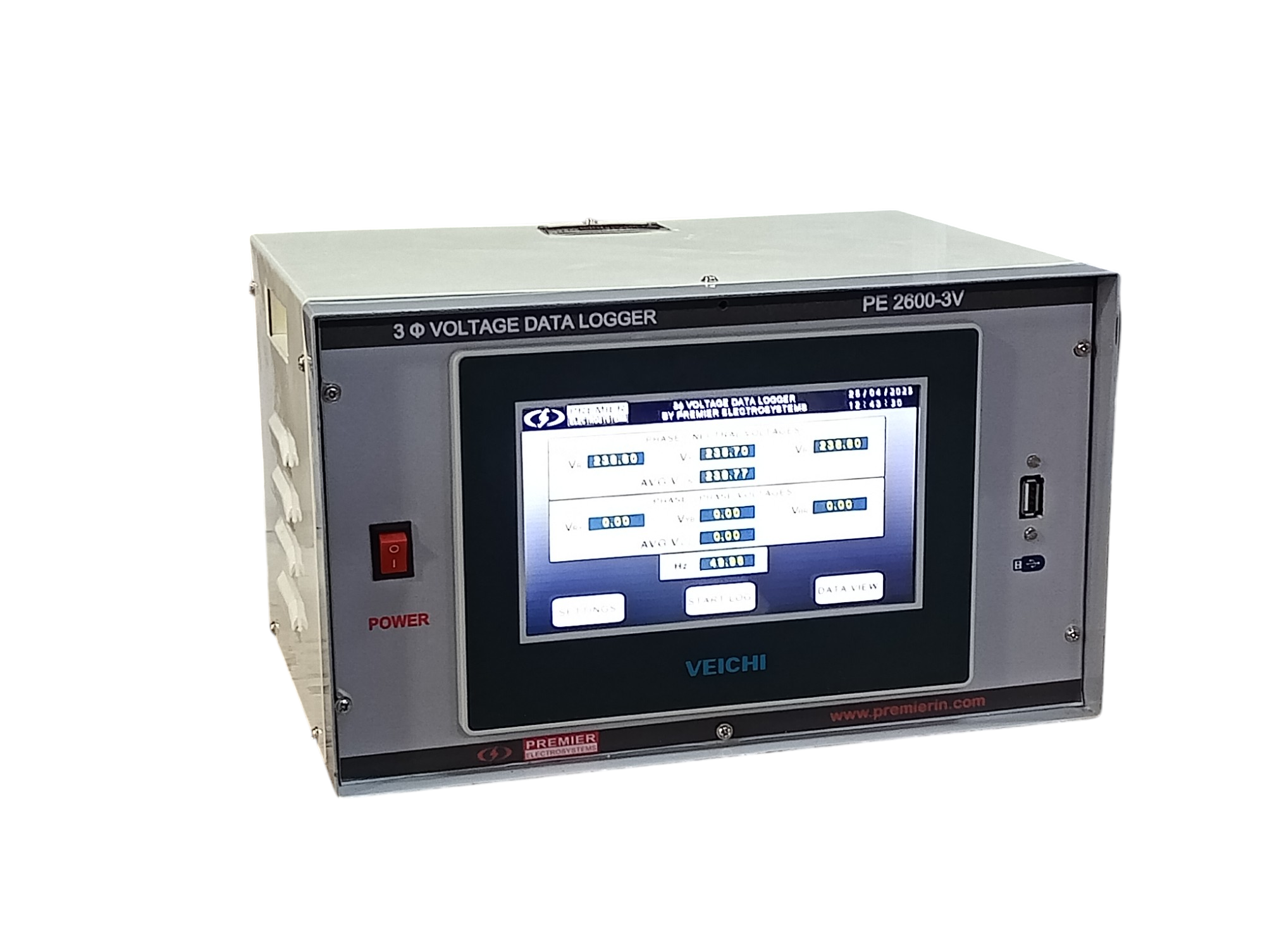

APPLICATION SPECIFIC POWER LOGGER


Application Specific Data Logger

Model: PE 26XX SERIES

FEATURES:

  • Customizable Input Configuration: Supports both single-phase and three-phase voltage and current monitoring tailored to your application needs.
  • Accurate Logging for Power Parameters: Records voltage, current, power, and energy with precision for audits, load studies, or process control.
  • Designed for Specific Use Cases: Flexible design allows integration into machines, panels, or OEM systems with options like USB, Modbus, or GSM communication.

View Details

TECHNICAL SPECIFICATIONS:

  • Channels: From 1 Up to 168 channels
  • Input: Configurable (Voltage, Current, Temperature, Humidity, Pressure, Analog i/p, etc)
  • Resolution: As per input selected (0.001/0.01/0.1/1)
  • Accuracy: ±0.3%
  • Display: Touch screen Display (7"/ 11" options)
  • Logging: Internal memory (128 mb) with option to export
  • Internal Memory: 100000+ recordings
  • Other Facilities: PC Connectivity/ Cloud Connectivity/ Alarms/ Relay Actions
  • Customizations: This logger is designed as per user requirements.
Contact Us

Disposable Data Logger
3. PORTABLE DATA LOGGER
Model : TEMPU-x

* Ideal for Logging in Cold Chain, Cold Logistics, Ships, Cold Rooms, Cold Storages, .

View Details

TECHNICAL SPECIFICATIONS

  • Log Interval: 10 min
  • Accuracy: ±0.5°C
  • Log Period: 30 days/60 days/90 days/Other
  • Data Capacity: As per log period
  • Size: Approx. 67x28 mm
  • Weight: Approx. 13 gm
  • Buttons: Long press to start and stop
  • Report: Plug into PC to generate PDF file of data log with graphs
  • Packaging: Waterproof seal bag packaging
  • Battery/Battery Life: CR2032/2 years
Download PDF

ABOUT PREMIER'S DATA LOGGERS:

Premier Electrosystems designs and manufactures high-performance data loggers for monitoring critical parameters such as temperature, humidity, voltage, current, and energy in real-time. Engineered for precision and reliability, our data loggers are available in single-phase and three-phase configurations, with support for USB, Modbus, and customized communication protocols. Whether for industrial, laboratory, or environmental use, our devices offer flexible and user-configurable solutions tailored to specific monitoring requirements. Premier’s commitment to quality and innovation ensures our data logging solutions meet the demanding needs of modern automation and compliance-driven industries.

APPLICATIONS OF DATA LOGGERS:

Premier’s data loggers are used across a wide range of industries and applications:
  • Electrical Monitoring: Load studies, energy audits, and panel diagnostics in industrial facilities.
  • Environmental Monitoring: Tracking temperature and humidity in cold storage, pharma warehouses, or cleanrooms.
  • Process Industries: Monitoring parameters in manufacturing lines, PLC systems, and SCADA integrations.
  • Battery & Solar Systems: Logging DC voltage and current for testing and diagnostics.
  • R&D and Laboratory Use: Precision logging of test conditions and equipment performance.
  • OEM Integration: Custom-built solutions for equipment manufacturers and system integrators.

IMPORTANCE OF DATA LOGGERS:

Data loggers play a crucial role in ensuring operational efficiency, safety, compliance, and performance optimization. By capturing accurate, time-stamped data on key parameters, they help:
  • Detect anomalies early to prevent downtime
  • Maintain compliance with industry standards and audits
  • Automate data collection for analysis and reporting
  • Optimize energy usage and reduce costs
  • Support predictive maintenance strategies

    • In today’s data-driven world, real-time and historical monitoring is essential—and Premier’s data loggers deliver the precision and adaptability your systems need.
