Testing Instruments as per IS 1293
Plugs and Socket-Outlets for Household and Similar Purposes
Relevant Standards: IS 1293 | IEC 60884-1 | BS 1363 | CEE 7
Complete Testing Solutions for IS 1293 Compliance
Premier Electrosystems is a leading manufacturer of specialized test equipment and gauges for plugs and socket-outlets as per IS 1293 and IEC 60884-1. Under mandatory Bureau of Indian Standards (BIS) directives, all plugs and socket-outlets used in household, commercial, and industrial appliances must satisfy strict electrical, mechanical, and thermal safety criteria.
Our comprehensive test instruments allow plug and socket manufacturers, quality control departments, and NABL testing laboratories to conduct all mandatory tests, including mechanical strength, breaking capacity, normal operation, insulation resistance, high voltage breakdown, and dimensional verification.
Key Testing Requirements Covered
Applicable Standards
Featured IS 1293 Test Instruments
1. Precision Digital Multimeters
Accurate voltage, current, and loop resistance measurements during electrical load testing.
2. Vernier Calipers & Precision Scales
Dimensional measurement of pin diameters, center distances, socket entry dimensions, and creepage distances.

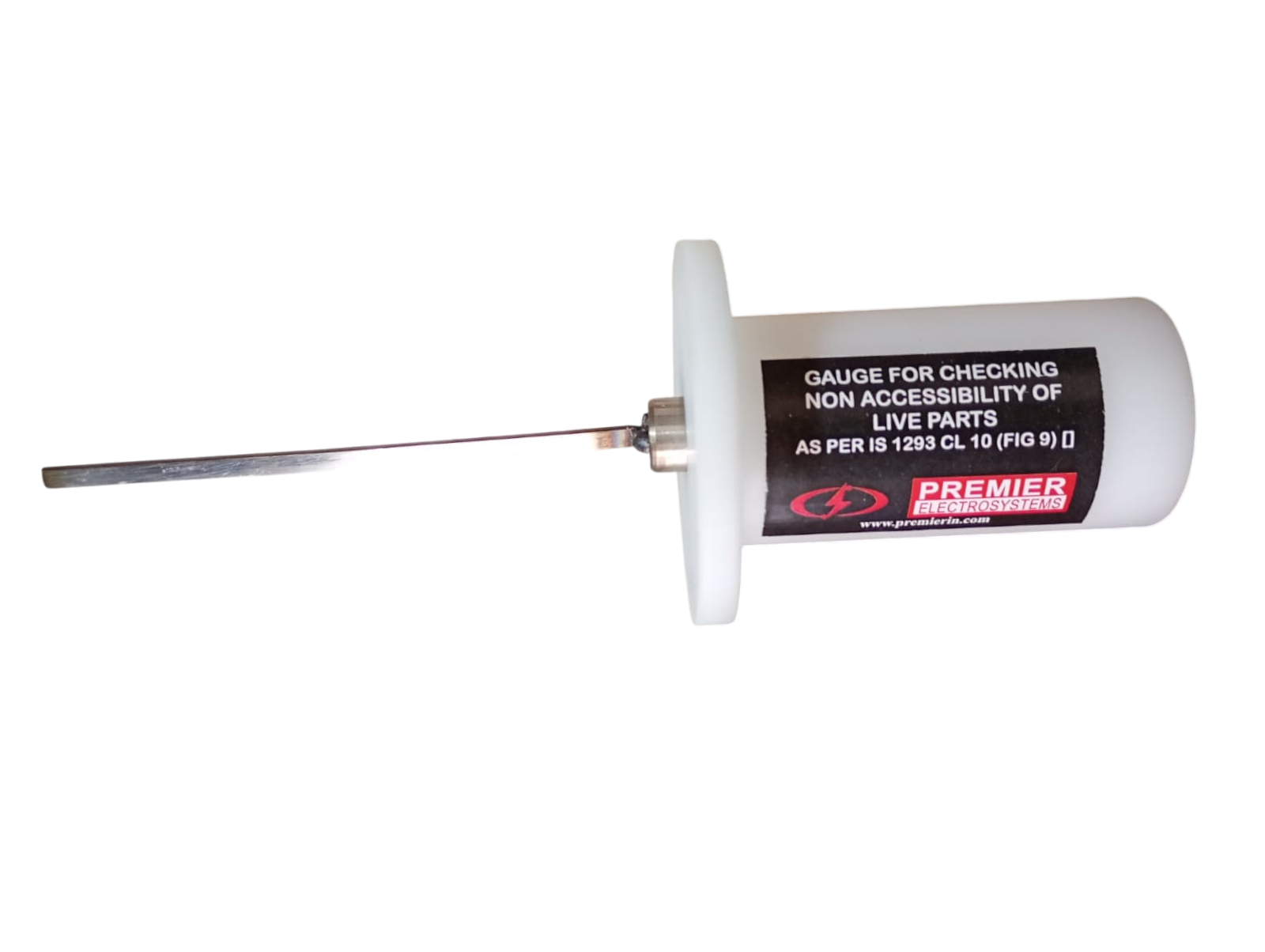

3. Steel Test Probes & IS 1293 Gauges
Standardized access probes, Go / No-Go gauges, and contact force test gauges for socket contacts.
4. Digital Insulation Tester
Measures insulation resistance between live parts, earth, and accessible outer body surfaces under high DC voltage.
5. High Voltage Breakdown Tester (HV Tester)
Verifies dielectric strength of insulating materials and contact distances under high AC test voltages.
6. Leakage Current Tester
Measures earth and surface leakage currents under operating temperature and nominal power supply.
7. Earth Continuity & Resistance (ECR) Tester
Evaluates earth connection reliability between earthing pin and grounding terminal under high current load.
8. Overload & Power Load Test Panel
Regulated supply panel designed for normal operation, overload current test, and breaking capacity evaluation.
9. Multichannel Temperature Data Logger
Monitors temperature rise at terminals, contacts, and outer housing during current carrying tests.
10. Humidity & Environmental Stability Chamber
Pre-conditions plugs and sockets under humidity and temperature treatment prior to insulation tests.
Comprehensive IS 1293 Equipment Checklist
Mechanical & Dimensional Testing
- IS 1293 Dimension Go & No-Go Gauges
- Plug Pin Withdrawal Force Apparatus
- Tumbling Barrel for Plug Drop Impact Test
- Plug Pin Bending Stress Test Rig
- Cord Retention and Flexing Tester
- Spring Impact Hammer for Outer Casing
- Mechanical Strength Test Apparatus
Electrical & Thermal Safety
- Breaking Capacity & Normal Operation Test Rig
- Multichannel Temperature Rise Logger
- High Voltage Breakdown Tester (0-5kV AC)
- Digital Insulation Resistance Tester
- Earth Continuity Resistance (ECR) Tester
- Glow Wire Test Apparatus Support
Video Demonstration: Electrical Safety Test Setup
Why Choose Premier Electrosystems?
Strict Compliance with IS 1293: Every gauge, test rig, and power panel is engineered in according with Bureau of Indian Standards (BIS) specifications for IS 1293 and IEC 60884-1.
40+ Years of Manufacturing Excellence: Our technical team possesses vast experience in designing electrical safety testing equipment for leading manufacturers, testing laboratories, and certification bodies.
Complete Calibration Support: All test instruments and standard gauges are supplied with calibration certificates traceable to NABL-accredited labs to support hassle-free BIS lab recognition.
Frequently Asked Questions
Ready to Setup Your IS 1293 Plug & Socket Test Laboratory?
Contact our technical engineering team today for custom quotes, instrument specifications, and BIS compliance guidance.
