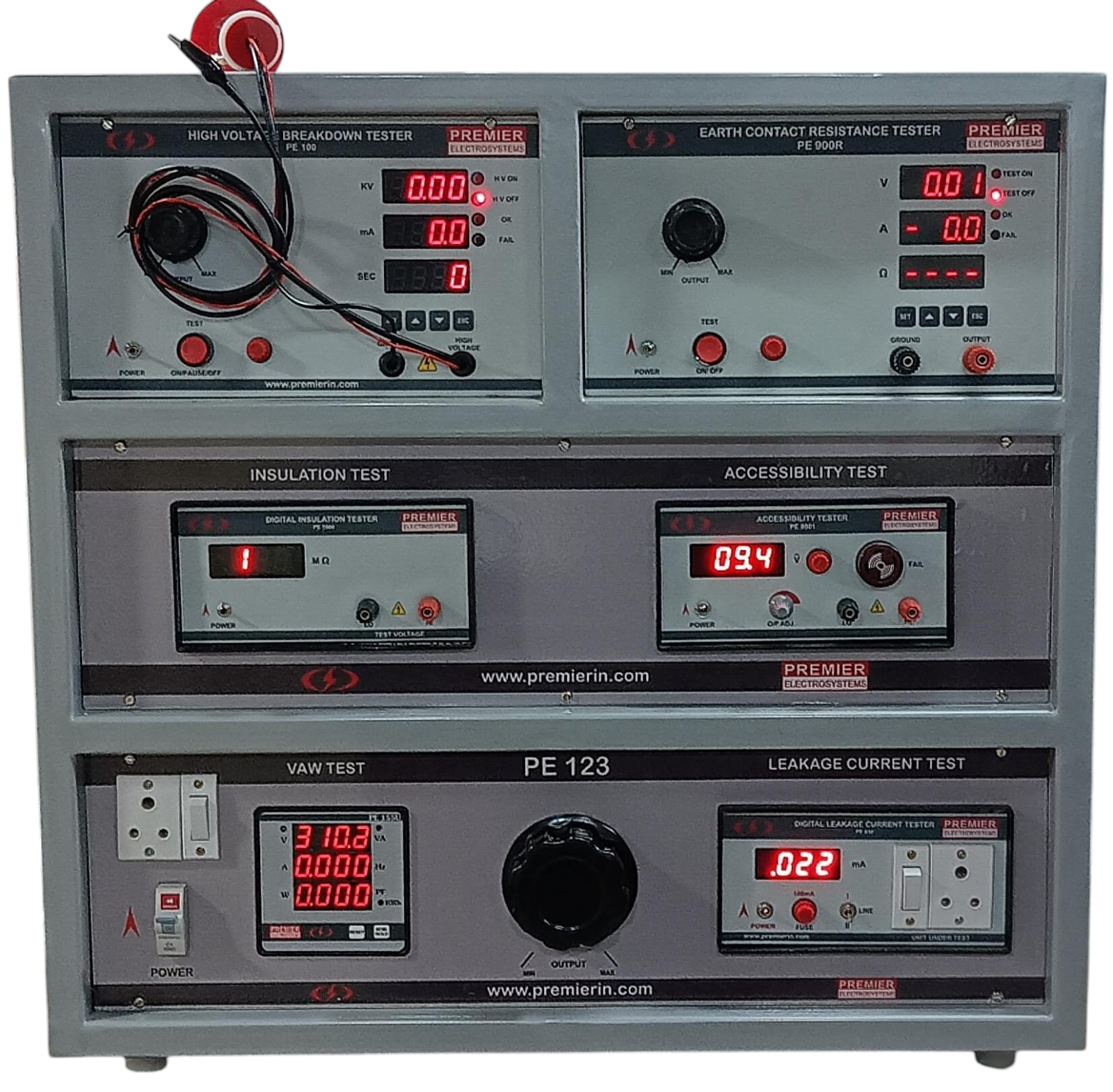

Composite Test Panel
Customized Multi-Test Electrical Testing System
Model: PE 123
Custom Composite Test Panel for Multiple Tests
One coordinated test station that combines several electrical and performance tests in a single panel, customized to your requirements. Tests can be added or omitted to suit your product and process.
Key Features
Applications
Certifications
Technical Specifications
VAW/ PERFORMANCE TEST
Dimmer controlled test voltage 0-300 V / 0- 500 V up to rated load current. Digital V, A, W, PF, F, VA, KWh, Load Hour & Run Hour display.
TEMPERATURE RISE TEST
Temperature indicator with application-specific sensor, up to 1200 °C.
RPM TEST
Digital indicator with sensor, up to 9,999 / 30,000 RPM.
HV TEST
Test Voltage options from 0–3 kV/ 0- 5 kV/ 0-10 kV and Current limit options from 30mA /100 mA/ 200 mA
ECR TEST
Test Current 0–30 A/ 0-50 A continuously adjustable test current with direct display of resistance
INSULATION TEST
Test Voltage: 500 V DC across terminals with digital display of insulation resistance.
LEAKAGE CURRENT TEST
Digital measurement from line or neutral to appliance body.
RESISTANCE TEST
2 OR 4 wire digital ohm meter for accurate, precise readings.
ENDURANCE TEST
Adjustable ON / OFF durations with a digital cycle counter.
Product Video
How to Choose a Composite Test Panel
A composite test panel replaces several separate instruments with one station. Use these six steps to specify the right one.
1. List the tests you need
Note every test your product standard requires: VAW/performance, HV, ECR, insulation, leakage current, resistance, temperature rise, RPM or endurance.
2. Match the ratings
Choose the test voltage and current to suit your product. HV: 3, 5 or 10 kV. ECR: 30 or 50 A. VAW: 300 or 500 V up to rated load current.
3. Fix the test sequence
Decide the order of tests on the line. Fewer manual changes mean faster, more repeatable testing.
4. Check readouts and sensors
Confirm digital displays, application-specific sensors (temperature up to 1200 °C, RPM up to 30,000) and true R.M.S. measurement if needed.
5. Choose the cabinet
Pick wall-mount or test bench, and the socket type (5/15 A) for the item under test.
6. Ask for a custom quote
Share product type, tests, ratings and sequence. We configure the panel and quote for your exact requirement.
